Bassi Bikes - Rachel 2021 Frameset

Pre-orders open now, frame arrival September / October 2021
More images coming soon! (Bike shown is previous model.)

DETAIL

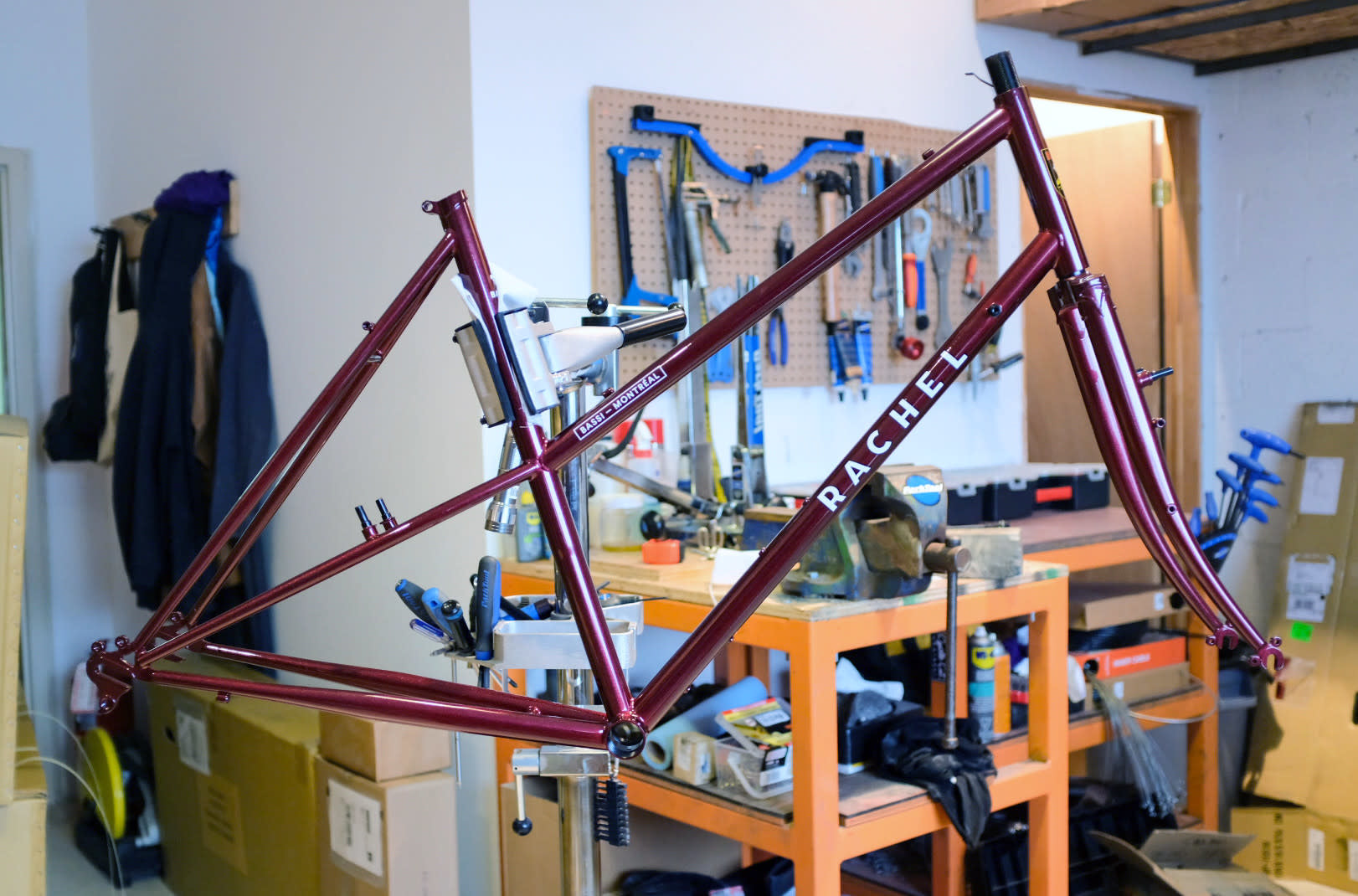

Our beautiful Rachel step-through frame is getting revamped! This new version is just as useful for every kind of riding as the previous one, but we made a few modifications to make it a little more stable and comfortable. Longer chain-stays, eyelets for two bottle cage and all kinds of racks, V-Brakes instead of road brakes, and more. Basically, we made the Rachel into an even more capable go-everywhere country bike.

The two smaller sizes are still designed around 26" wheels, while the two larger sizes use 700c wheels. The tire clearance now officially a few millimetres larger, to make it even easier for everyone to enjoy backcountry riding. Available in two magnificent new colours, Beaujolais and Asphalt.

  • Tube Type: 4130 CrMo steel (double butted top and down tubes/triple butted seat tube)
  • Bottom Bracket: 68mm wide, British Threaded
  • Seat Tube inner diameter: 27.2mm

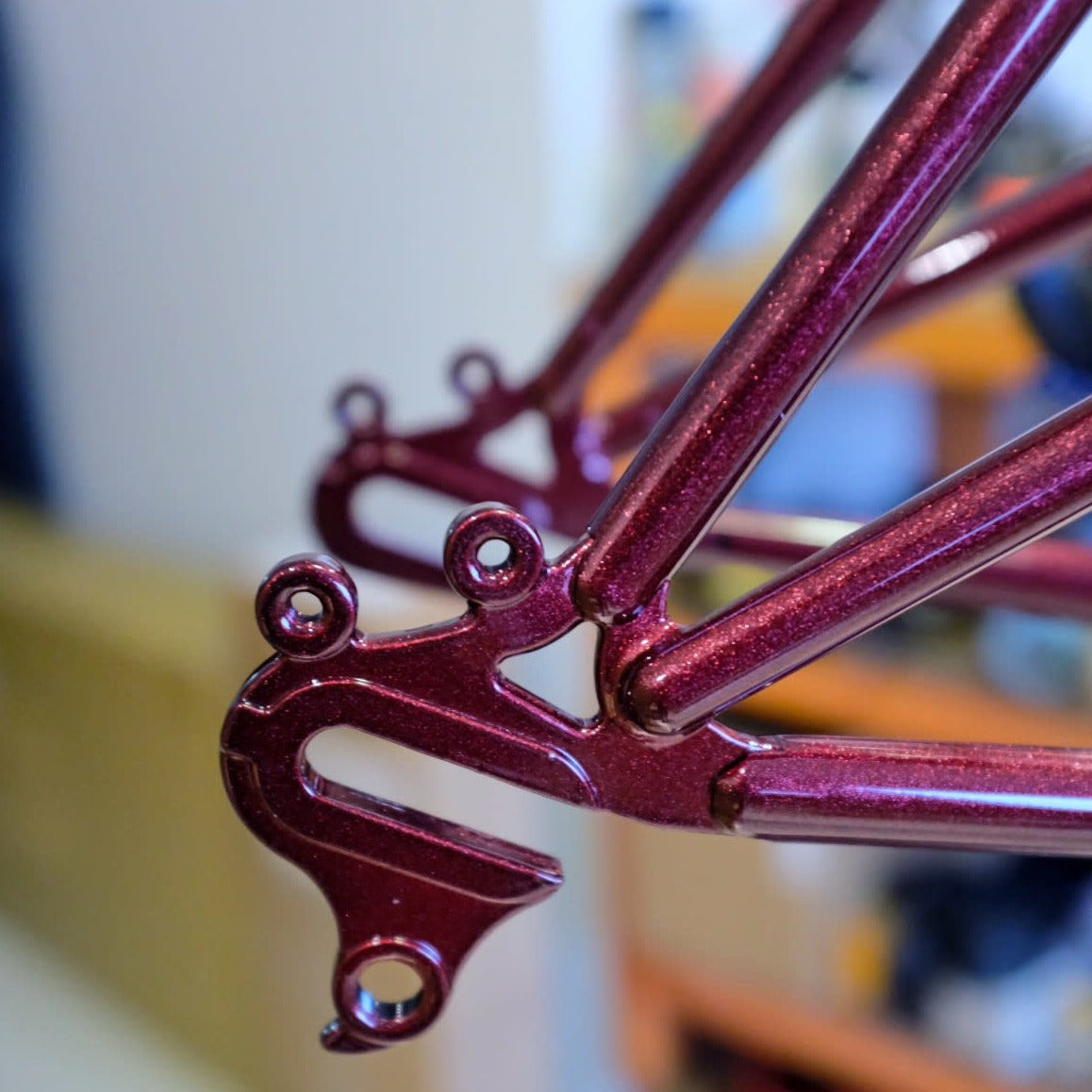

  • Diagonal drop-outs
  • M5 eyelets on seat stays and drop-outs for rack and fenders
  • 5M eyelets on down tube for 2 bottle cages

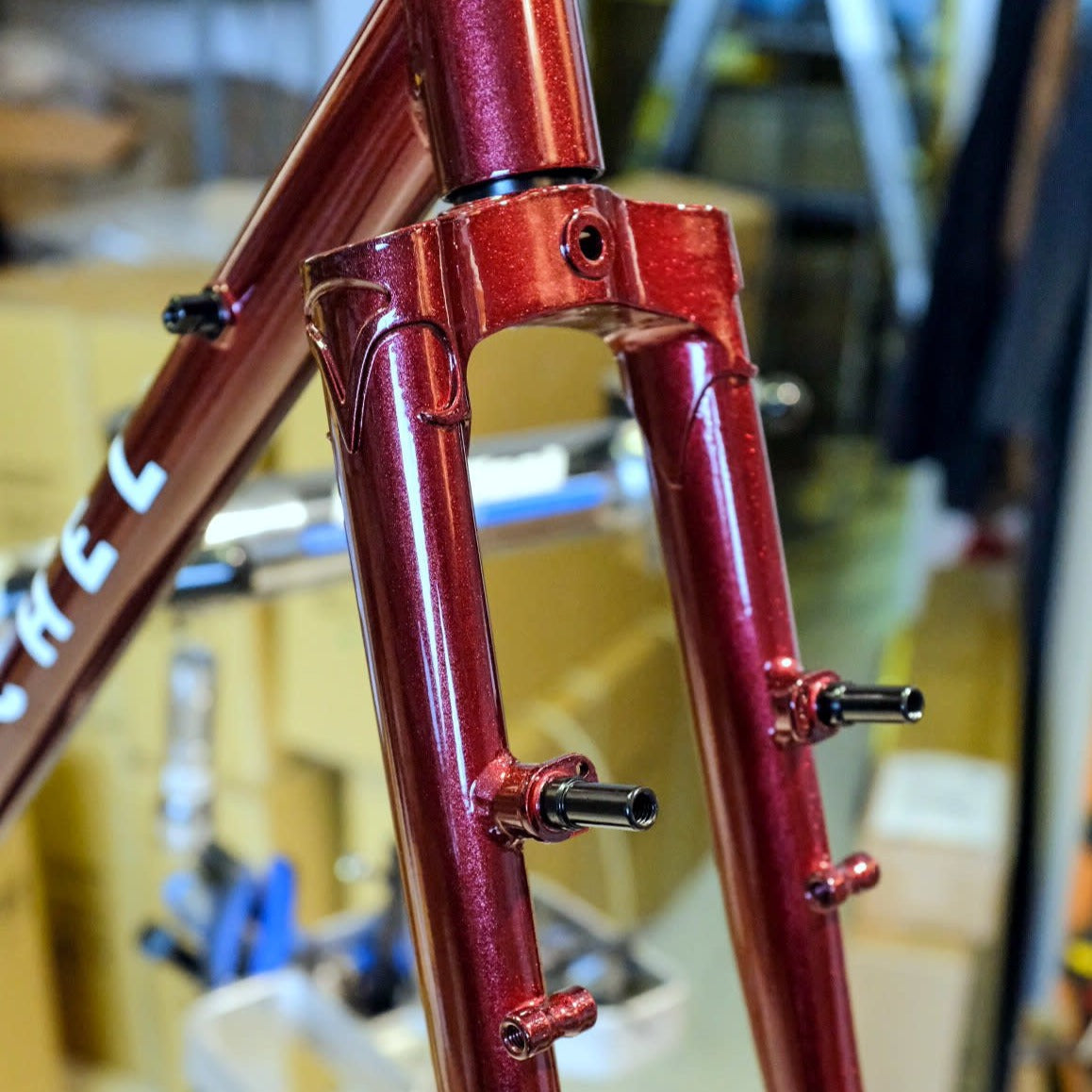

  • 5M eyelets on fork for fenders, mini platform rack and lowrider rack

Supplied with:

  • 1" threaded bent lugged fork with 26.4mm ø fork crown
  • Bottom Bracket shift cable guide
  • Rear hub positioning screws
  • Seat post bolt



GEOMETRY



* all measurements are in millimetres except for angle measurements which are in degrees.

Colours are not necessarily representative when viewed on a screen. Please be prepared to accept slight differences in hue from the colours you see here.
