10613

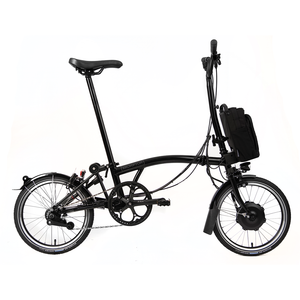

Brompton C Line Electric Explore

PLEASE CONTACT US OR VISIT THE SHOP FOR MORE AVAILABILITY, COLOURS AND OPTIONS IN CASE YOUR PREFERENCE IS SOLD OUT ONLINE. DEMO BIKE AVAILABLE FOR TEST RIDES TOO!

The original design with the 3-part fold, handmade in our London factory since 1975. Compact and robust – it’s a seriously engineered bike that’s fun to ride.

Although C Line is made to stand up to the rigours of everyday life in the city, owners have taken them on around-the-world trips, on country tours and even to the South Pole, but mainly they are used 364-days a year to improve the day-to-day (we recommend a day-off for an annual service).



EXPLORE

This electric bike can go the distance with 6-gears and a 250-kwh hub motor. Smart Pedal Assist can be configured to kick in when you choose.

6 speed • Mudguards • 15.53kg



SPECIFICATIONS:

Handlebars: Mid / High

Drivetrain: Brompton Wide-range 6 speed drivetrain (2 x 3 speed), 300% range

Main Frame: Precision drawn heat-treated steel tubing with hand brazing and selected auto-brazed joints

Rear frame: Hand brazed cold-formed micro-alloy steel tubing

Fork: Reinforced Electric specific steel brazed fork

Weight: 15.53kg

Folded Size: 645mm (H) x 565mm (W) x 270mm (D) (25.3’’ x 23’’ x 10.6’’)

Saddle: Brompton saddle with integrated carry handle. Incorporates a mount for a Brompton rear light and saddle bag. Brooks B17 available as option separately.

Seatpost: Brompton Chromoly steel with Chrome finish. 3 lengths avaiable as option

Grips: Lock-on grips with soft-compound rubber adhered to an engineered core

Seatclamp: Composite seat clamp and rear frame clip in matt black finish

Pedals: Brompton Folding left hand and non-folding right-hand pedals

Front Wheel: Single wall rim, 250W Brushless DC motor providing assistance up to 25 kmp/h

Rear Wheel: Single wall rim, Brompton Wide ratio 3 speed internal gear hub with 2 speed external gears (13 and 16 tooth)

Tyres: 349 x 35C Schwalbe Marathon Racer. A puncture resistant tyre with a reflective sidewall

Tubes: Schrader valve

Chainset: 6061 forged aluminium crank with 50T chainring and integrated chainguard

Shifter: Brompton 2 and 3 speed Trigger shifters

Chain Pusher: Brompton Chain pusher

Mudguards: Mudguards with rubberized flap

LightingFront and rear reflectors as standard. 40 Lux Busch & Muller AVY LED front lamp & rear lamp powered by main battery

Battery: 300Wh 36V with LED display. Range 20-45 miles . 5V 1.5A USB port to charge portable devices. 4-hour full charge using included 2A charger

Luggage: Essentials bag with 1.5L storage Optional: 20L City bag available separately

Connectivity: Brompton Electric iOS and Android apps available for download

Options: 4A Fast Charger with 2 hour charge time available separately

Pump: Brompton pump with flexible hose compatible with Schrader and Presta Valves
